Phantoms for Medical Imaging

CT Torso Phantom CTU-41

Åpne stort bilde

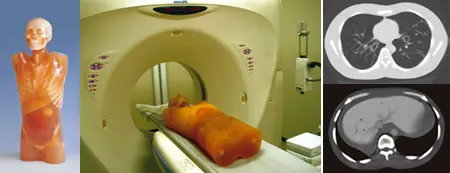

A One-piece anthropomorphic torso phantom with anatomical structures allows various CT approaches including helical scanning. Along with state-of-the-art synthetic bones, brain with cerebral ventricles, eye balls, lungs with three-dimensional pulmonary vessels, trachea, liver with portal and hepatic veins, kidneys, gallbladder, pancreas, spleen, aorta, cava, ureter, urinary bladder, prostate, rectum, sigmoid colon are embedded. Each individual organ has particular Hounsfield number which corresponds that of human body.

KYOTOKAGAKU original phantom material with radiation absorption approximate to human tissue allows scanning under actual clinical setting.

Last ned produktbeskrivelse (PDF)



Produktegenskaper

Specifications

Set includes:

  • 1 CT Torso Phantom CTU-41: life size, male
    Included structures:
    • Synthetic bones with cartilage: artificial skull, vertebra, clavicles, ribs, sternum,scapula, coxal bones, femurs
    • Brain with cerebral ventricles
    • Eye balls
    • Lungs with pulmonary vessels (up to the forth bifurcations)
    • Trachea (up to the third bifurcations)
    • Liver with portal and hepatic veins
    • Kidneys
    • Gallbladder
    • Pancreas
    • Spleen
    • Aorta
    • Cava
    • Ureter
    • Urinary bladder
    • Prostate
    • Rectum
    • Sigmoid colon
    • Ascites
  • 1 set of sample X-ray films

Materials:

Soft tissue and organs: Urethane base resin (SZ-50)
Synthetic bones: Epoxy base resin

Phantom size:

approx. 100 cm height

Phantom weight:

approx. 45 kg

Packing size:

approx.106 x 58 x 62 cm

Packing weight:

approx. 52 kg







Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND
stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
