Multipurpose Chest Phantom N1 "LUNGMAN"

Åpne stort bilde

This is a multipurpose phantom which is applicable for both plain radiography and CT scanning. The inner components consisting of mediastinum, pulmonary vasculature and an abdomen block are easily detachable, allowing insertion of mimic tumors or other lesions. The unique radiological substitute material and the elaborate three-dimensional modeling of pulmonary vessels offer the most life-like X-ray and CT images. A combination of various approaches will enrich the training opportunities.


Production Supervision:

Kiyoshi Murata, Ph.D Professor, Shiga University of Medical Science
Norihisa Nitta, Ph.D, Shiga University of Medical Science


Last ned produktbeskrivelse (PDF)


Se video (WMV)
Video


Produktegenskaper


Multipurpose

Applicable for both plain radiography and CT scanning. Wide variety of uses in interpretation training, anatomical education, evaluation and assessment of devices and other research.

Accurate anatomy and high quality substitute materials

The phantom is an accurate life-size anatomical model of a human torso. The thickness of the chest wall is based on measurement of clinical data. The soft tissue substitute material and synthetic bones have x-ray absorption rates very close to those of human tissues.

X-ray

The phantom provides life-like radiographs very close to actual clinical images. The three-dimensional structure allows both PA and LATERAL images to be obtained. The phantom bones and vessels show life-like contrast gradations on the image along with tube voltages.

Computed tomography

Arms-abducted position of the torso suits the CT scanning. The pulmonary vessels are spatially traceable. Assessment of computer-aided detection systems is possible.



Skills, Trainings & Applications

Plain radiography:

  • Radiograph training
  • Interpretation training
  • Assessment of tube voltages, films and other devices

Computed tomography:

  • CT scan training
  • Interpretation training
  • Assessment of computer-aided detection systems

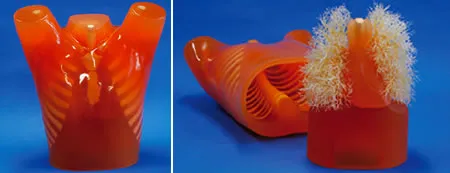

photo:

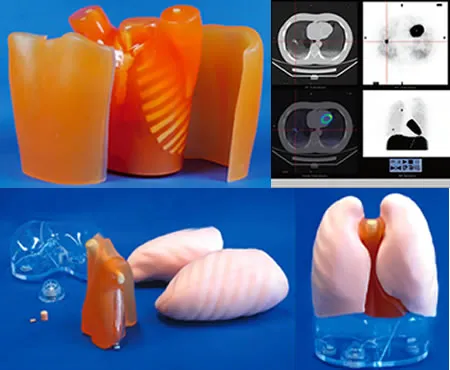

Expand N1 "LUNGMAN" with optional components

photo:

Chest phantom N1 has high potential for the development of further application.

Chest Plate:

  • Differences in X-ray absorption depending on body volume can be observed.
  • Using 60mm thick plates, 30mm is added to the front and to the back of the N1 chest.

Components for Radioisotope:

  • Image fusion experiment with CT & RI can be performed.

Specifications

Set includes: 1 male chest torso

  • Main body: synthetic bones are embedded
  • Internal parts: separates into four parts Mediastinum: heart, trachea Pulmonary vessels (right and left) Abdomen (diaphragm) block: no internal structure
  • 15 simulated tumors
  • 3 varieties of Hounsfield number: approx -800, -630,+100
  • 5 sizes for each type: diameters 3, 5, 8, 10, 12 mm

Materials:

  • Soft tissue: polyurethane (gravity 1.06)
  • Synthetic bones: epoxy resin

Phantom size:

  • 43 x 40 x 48H cm, chest girth 94 cm
  • weight: approx.18 kg

Packing size:

  • 59 x 52 x 30 cm, 25 kg

Optional parts

  • 41337-010 Chest plates for N1 (a set of anterior and posterior plates)
  • 41337-020 Urethane foam lungs
  • 41337-030 Liver RI container for N1
  • 41337-040 Gallbladder RI container for N1
  • 41337-050 Pulmonary nodule RI container for N1
  • 41337-060 Mediastinum with left myocardium RI container for N1


Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND		 stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
